High Performance PTFE Steam Hose for Industrial Ironing & Laundry Systems

Product Overview

This PTFE steam hose is engineered for demanding commercial ironing and industrial laundry applications. Featuring a smooth PTFE inner tube and stainless steel wire reinforcement, it delivers reliable steam transfer under extreme temperature and pressure conditions.

It is designed to provide stable, safe, and long-term operation for continuous steam systems.

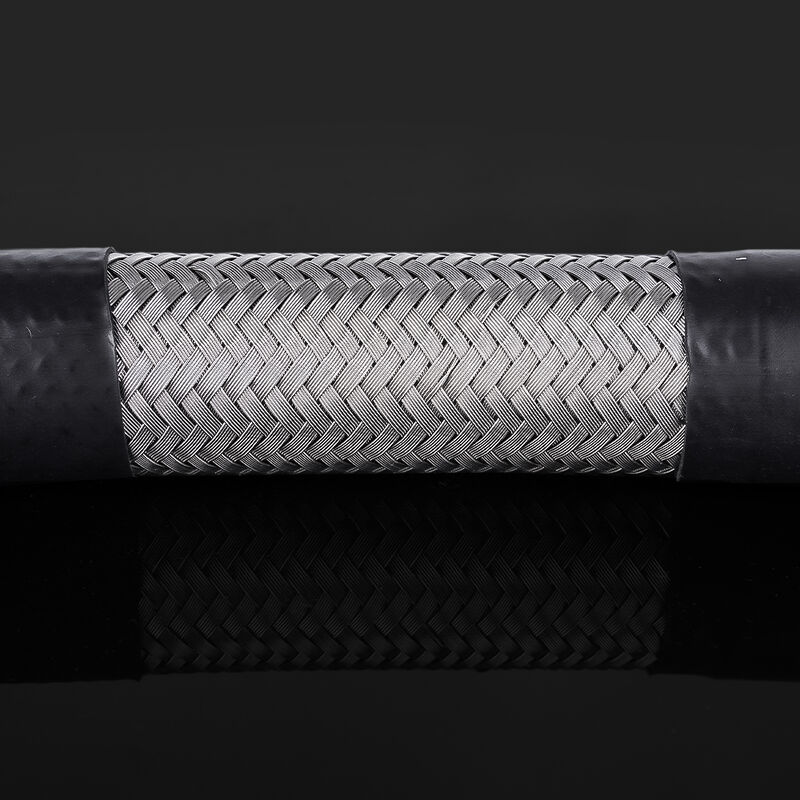

Hose Construction

Inner Tube
Smooth bore PTFE, offering superior heat resistance, chemical stability and low friction steam flow.

Reinforcement
High-tensile stainless steel wire braid (SS304 or SS316 available) for enhanced pressure performance and mechanical strength.

Outer Layer
Exposed stainless steel braid for abrasion resistance, corrosion protection and long service life.

Technical Specification

• Material: PTFE inner tube with stainless steel braided reinforcement

• Operating Temperature: –65°C to +260°C

• Standard: SAE 100R14

• Optional Feature: Carbon-treated PTFE for anti-static performance

• Media: High temperature steam, air, chemicals, gases and aggressive fluids

Size & Pressure Data

Key Advantages

Extreme Heat Capability

PTFE tubing maintains performance in continuous high-temperature steam environments without softening, cracking or degradation.

High Pressure Safety

The stainless steel braid provides reliable pressure resistance, ensuring safe operation in industrial steam systems.

Excellent Flexibility

Despite its strength, the hose remains lightweight and easy to route in tight or moving installations.

Low Flow Resistance

The smooth PTFE inner surface minimizes friction, allowing efficient steam transfer and preventing internal buildup.

Long-Term Durability

PTFE resists aging, corrosion and chemical attack, significantly extending hose service life.

Anti-Static Option

Carbon-loaded PTFE liner can be supplied to reduce electrostatic charge for enhanced safety.

Typical Applications

• Industrial steam pressing machines

• Commercial laundry ironing equipment

• Garment finishing and textile processing lines

• Central steam distribution pipelines

• High-temperature steam and gas transfer systems
